DJI Dock 3: Scalable Drone Deployment System for Enterprise and Fleet Operations

The DJI Dock 3 is a third-generation automated drone deployment system purpose-built for enterprise operators who need persistent aerial coverage without the overhead of continuous crew deployment.

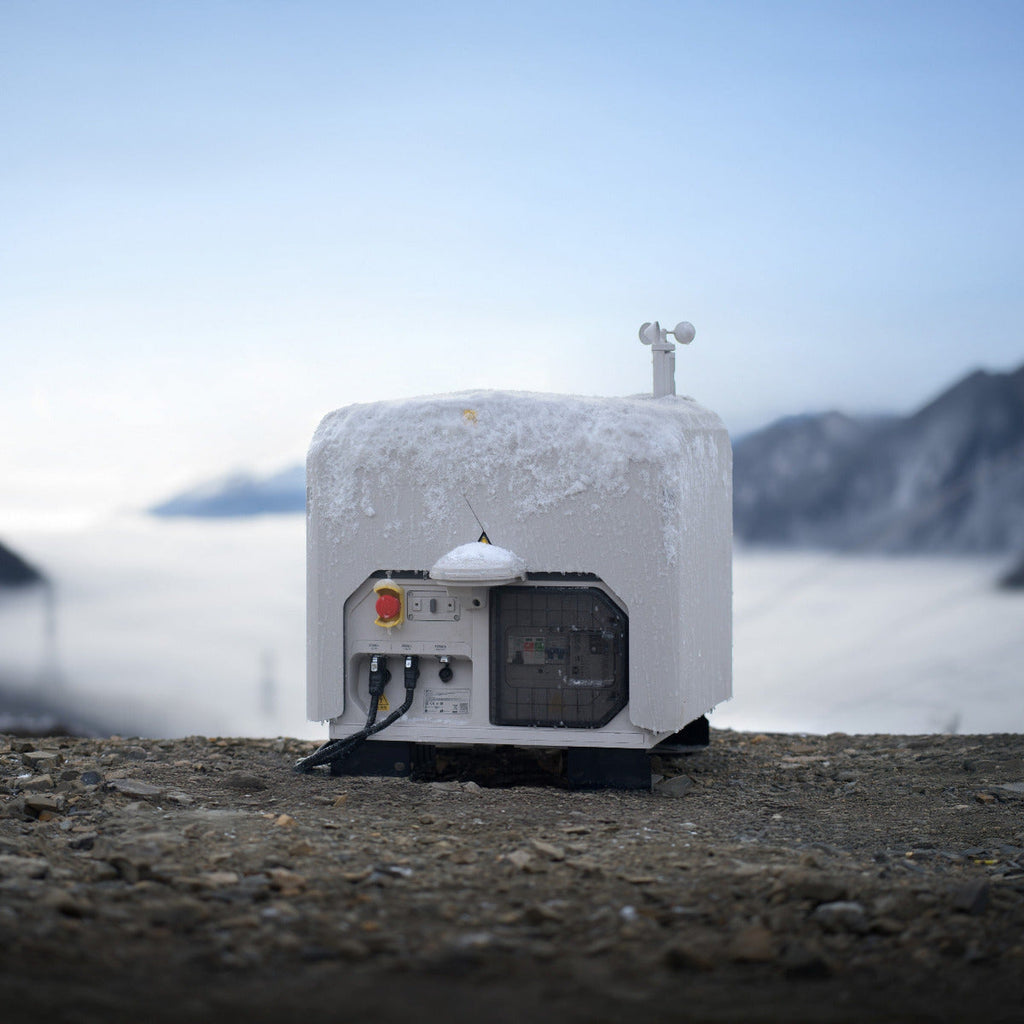

Compatible exclusively with the DJI Matrice 4D and Matrice 4TD (aircraft sold separately), the system delivers a fully integrated hardware and software stack — IP56-rated weatherproof enclosure, compressor-based climate control, onboard environmental sensing, and DJI O4+ Enterprise transmission — that keeps aircraft mission-ready around the clock across an operating temperature range of -22°F to 122°F (-30°C to 50°C).

For fleet integrators managing coverage across multiple sites or mission profiles, the Dock 3 provides the infrastructure foundation that makes scalable autonomous operations viable.

Key Features and Benefits

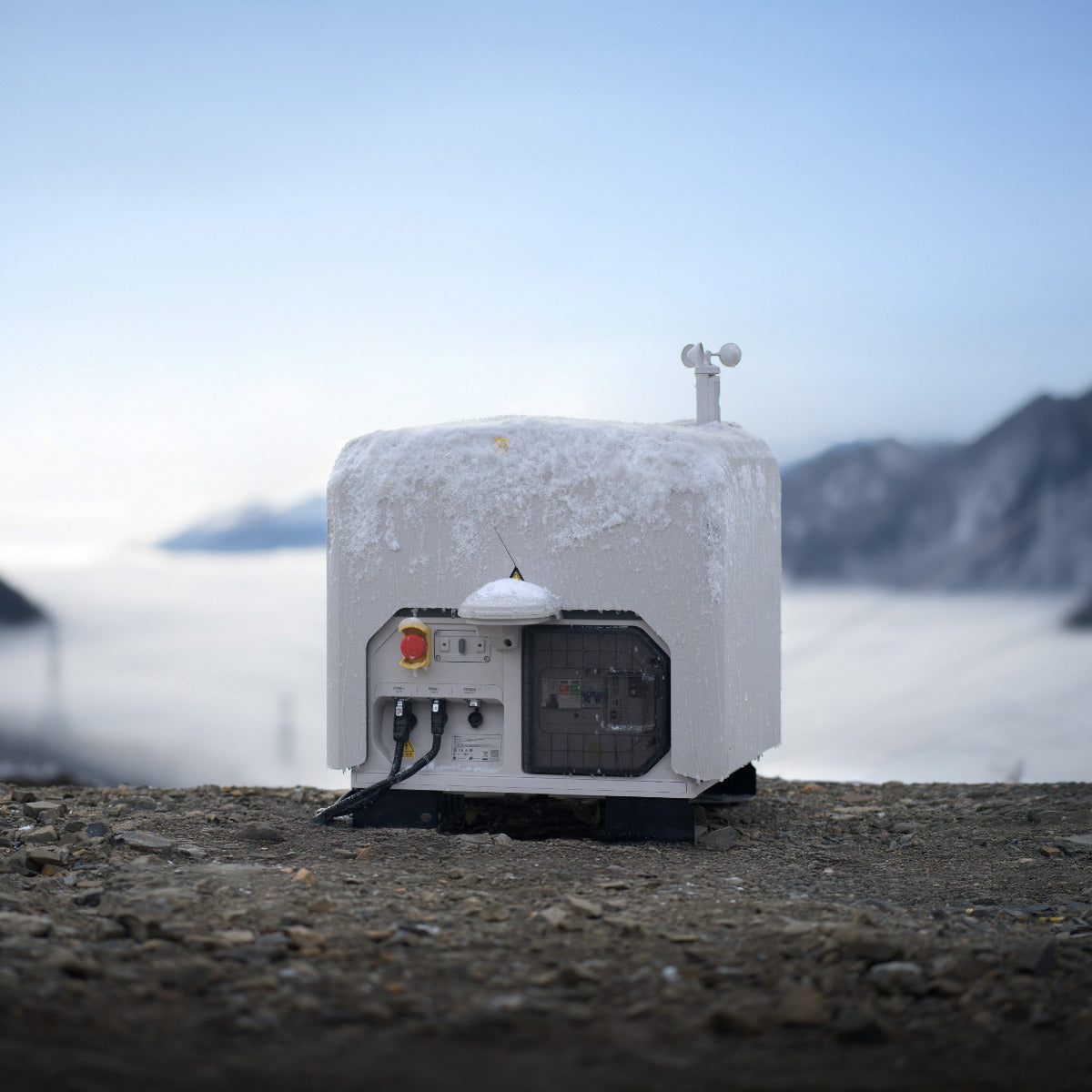

• IP56 protection: dust and water resistance rated for permanent outdoor deployment in harsh conditions.
• Vehicle-mounted deployment: first DJI Dock to support mobile installation for rapid repositioning between sites.
• Dual-dock vehicle configuration: two docks mountable on a single vehicle for continuous dual-drone rotation.

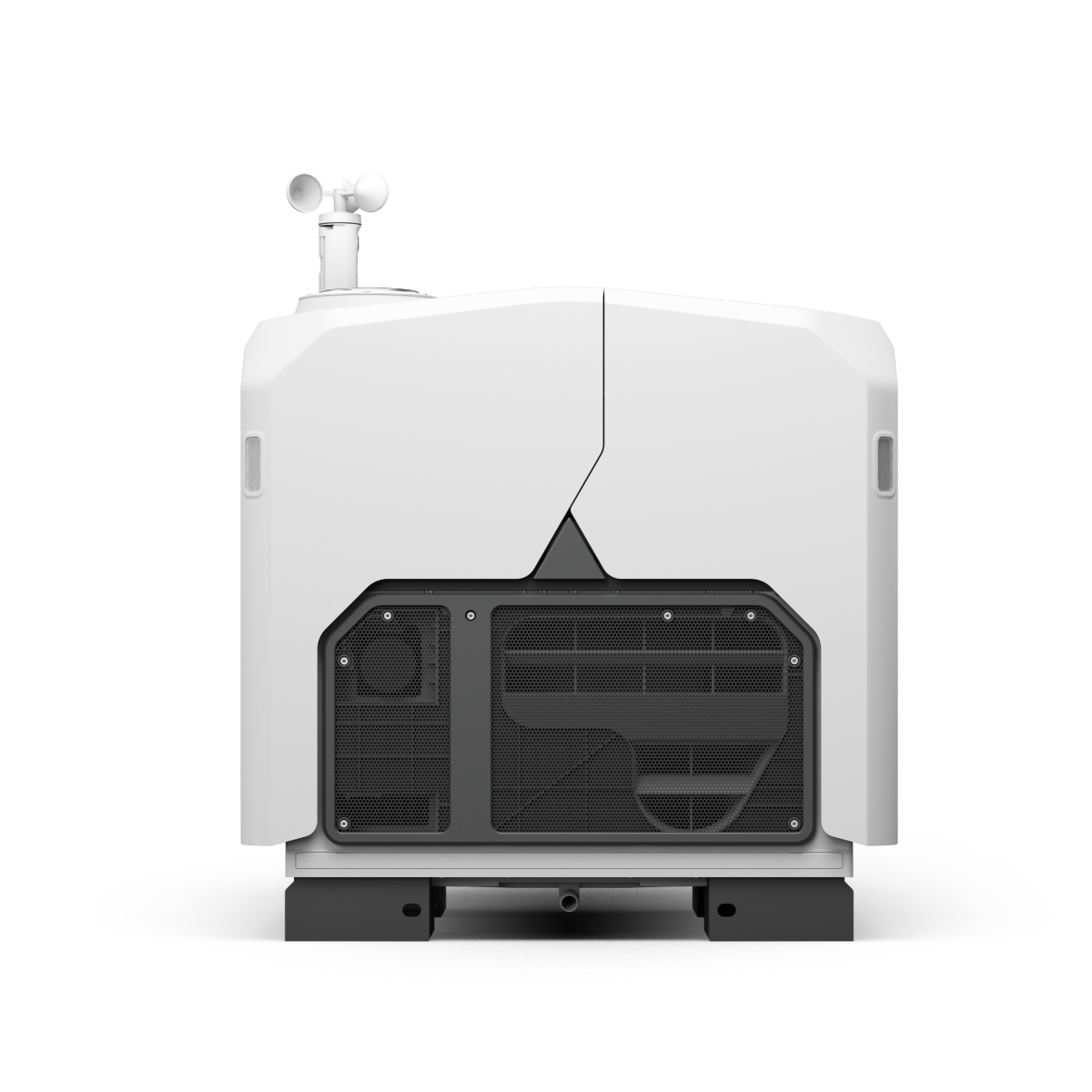

• Compressor-based AC: active heating and cooling maintains aircraft readiness from -22°F to 122°F operating range.
• 27-minute charge: Matrice 4D Series battery recharged from 15% to 95% for rapid mission turnaround.
• Backup battery: 12 Ah lead-acid UPS sustains dock operation for more than 4 hours after a power outage.

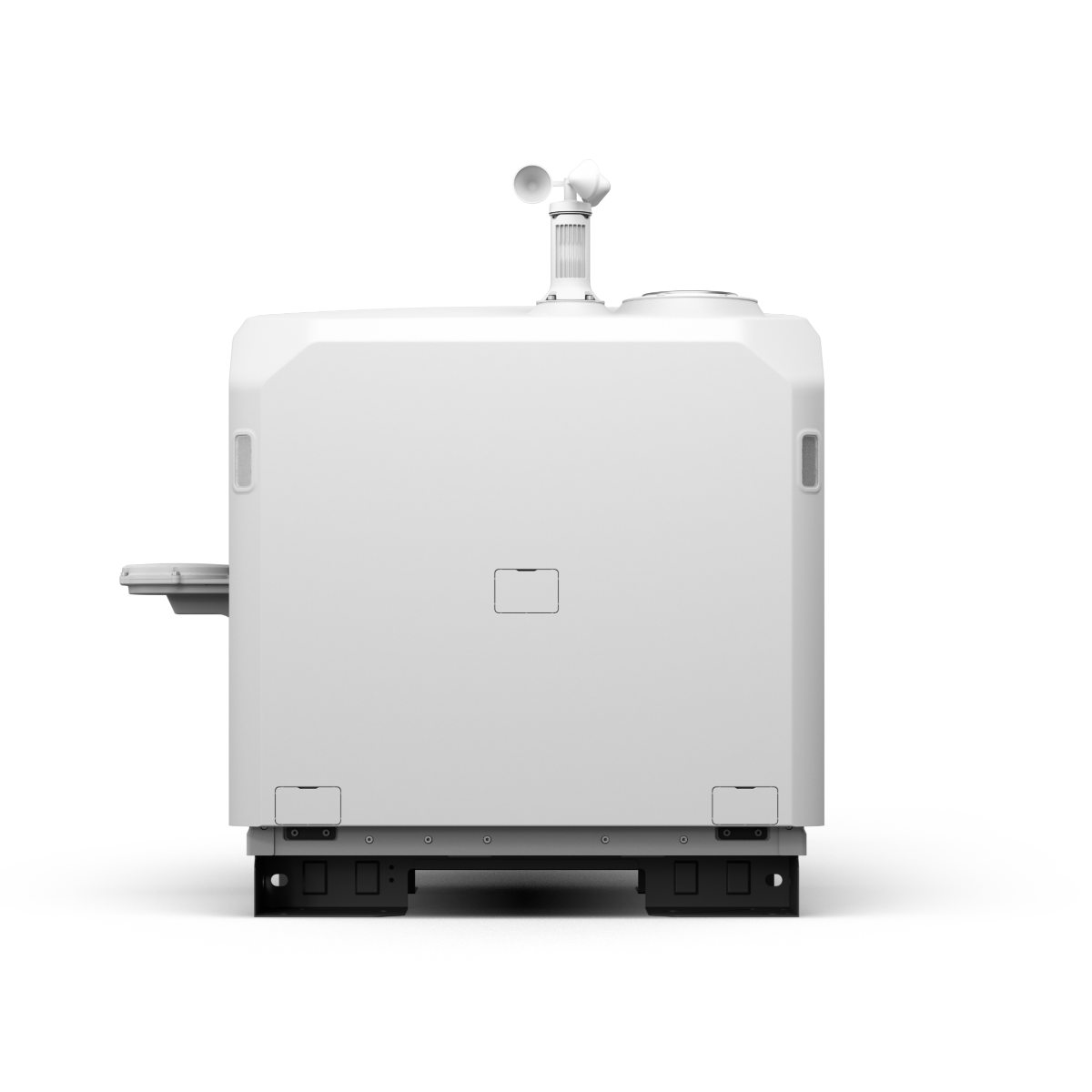

• Onboard sensors: wind speed, rainfall, ambient temperature, water immersion, and in-cabin monitoring integrated.
• Dual security cameras: internal and external 1920 x 1080 cameras with 151° FOV and auxiliary white light.
• DJI O4+ Enterprise transmission: up to 15.5-mile (25 km) video link via 9-antenna 2T4R intelligent switching.
• FlightHub 2 integration: cloud-based mission scheduling, RTK calibration, live view, and multi-dock fleet management.

Infrastructure That Scales With Your Operation

Enterprise UAV programs rarely stay static. Coverage requirements expand, incident response zones shift, and inspection corridors change with asset portfolios. The Dock 3 is built to accommodate that operational reality at the platform level. Fixed installations can be deployed using four distinct mounting configurations: concrete base, steel frame, load-bearing frame, or direct ground mount, giving integrators the flexibility to match installation method to site conditions without custom engineering for each location.

Vehicle-mounted deployment extends that flexibility further, enabling the same dock hardware to serve both permanent and mobile roles within a single fleet. At the software layer, FlightHub 2 supports multi-dock task management, coordinated mission planning across installations, and cloud-based RTK location calibration that persists across restarts and requires recalibration only when a dock is physically relocated.

For organizations building out drone-as-a-service programs or expanding from pilot deployments to full operational coverage, the Dock 3 provides a consistent, manageable hardware baseline across every node in the network.

Dock 3 vs Dock 2—Key Upgrades

Compatibility and System Integration

• DJI Matrice 4D: compatible aircraft (sold separately) with 4/3 CMOS 20 MP wide-angle, 48 MP medium tele, and 48 MP tele cameras.
• DJI Matrice 4TD: compatible aircraft (sold separately) adding a 640 x 512 thermal camera and NIR auxiliary illumination.
• DJI Matrice 4D Series Battery: 6,768 mAh, 149.9 Wh, 400-cycle rated, low-temperature self-heating charging.
• DJI FlightHub 2: primary cloud platform for multi-dock mission planning, live view, fleet management, and RTK calibration.
• DJI Cloud API: enables integration with third-party and private enterprise cloud platforms.
• DJI RC Plus 2 Enterprise: pairs with Matrice 4D/4TD for standalone use or Controller B override during site commissioning.
• DJI Cellular Dongle 2: optional 4G connectivity for dock and aircraft when Ethernet infrastructure is unavailable (sold separately).
• D-RTK 3 Relay Fixed Deployment Version: extends GNSS and video transmission coverage for building-side and tower installations.
• AL1 Spotlight: 32 W, IP55, 4.3 lux at 328 ft (100 m), compatible with Matrice 4D/4TD for nighttime operational support.
• AS1 Speaker: 15 W, IP55, 984 ft (300 m) effective broadcast range, compatible with Matrice 4D/4TD for public address.

Applications and Use Cases

• Enterprise fleet deployment: standardized dock hardware across fixed and mobile nodes supports consistent multi-site operations.
• Emergency response: vehicle-mounted deployment repositions the full system to active incident sites as operational requirements shift.
• Firefighting operations: Matrice 4TD thermal camera provides real-time heat mapping and fire boundary data for ground crew coordination.
• Power line and substation inspection: fixed dock deployment along transmission corridors supports automated repeated route inspection.
• Oil and gas facility monitoring: continuous remote coverage of pipelines and facilities reduces recurring crew deployment costs.
• Security and perimeter patrol: FlightHub 2 mission automation schedules flights across protected sites without operator intervention.
• Bridge and infrastructure inspection: dock positioned near asset enables repeatable close-range data collection across inspection cycles.
• Drone-as-a-service programs: consistent dock hardware baseline simplifies fleet standardization and multi-client service delivery.

The DJI Dock 3 resolves the core challenge of scaling autonomous drone operations beyond individual deployments: it provides a hardware and software platform that is consistent enough to manage at fleet scale, and flexible enough to cover the range of environments and deployment scenarios that enterprise operations actually encounter.

Dronefly's enterprise integration team works directly with fleet operators and program managers to design Dock 3 deployments that match real operational requirements — site selection, network architecture, FlightHub 2 configuration, and aircraft pairing.

As a premier West Coast UAV dealer with deep experience in enterprise UAS integration, Dronefly brings the systems-level perspective that complex multi-site deployments demand.

Contact Dronefly today to configure your DJI Dock 3 program.
